S PRO | Special Products
- Chrome
- Feeder expendables
- Glass line repair
- Hot repair of the silica roof
- Severe-corrosion areas
- Throut & corner block of doghouse
DETAIL
Advanced Refractory Solutions: S Series Bricks for High-Temperature Applications!

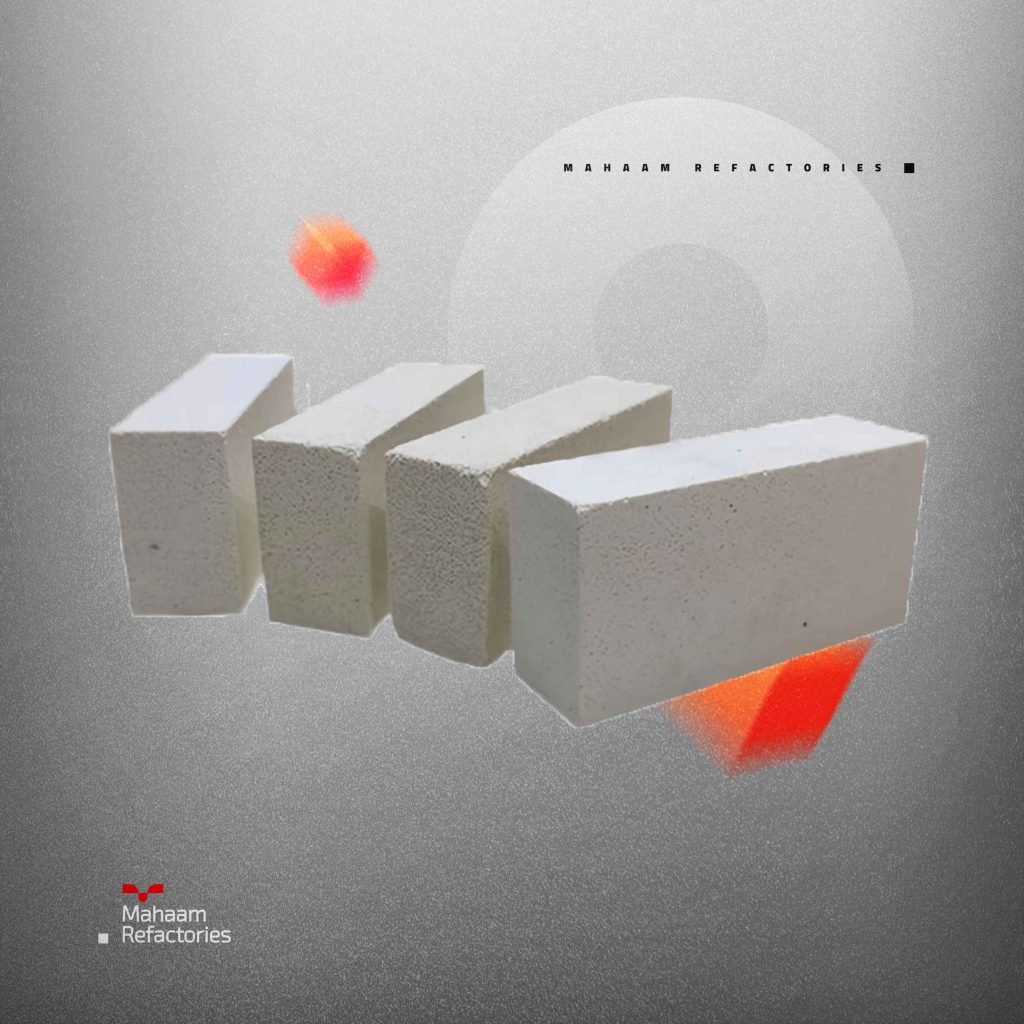

The S Series Refractory Brick is a high-performance ceramic component produced through a pressing process that incorporates significant amounts of specific elements, such as chromium, to optimize its performance properties under demanding working conditions. These refractory bricks are engineered for specialized applications, including hot repair of furnace roofs, molten material lines, dog houses, and other customer-specific requirements.
The S Series offers a range of compositions tailored to meet specific application needs. With a focus on high-quality raw materials, these refractory bricks ensure that iron-based impurities remain at an optimal level for both functional and economic performance. The company’s familiarity with international standards, along with its technical and scientific capabilities, has enabled the production of a globally competitive product.
One of the key advantages of the S Series Refractory Brick is its high dimensional accuracy, uniform density, and suitable mechanical properties. The operating temperature range for this product series is 1650°C to 1700°C, making it suitable for demanding furnace applications. The ability to customize dimensions allows for effective interaction with customers, and combined with fast production and the resolution of foreign procurement challenges, this provides a solid foundation for collaboration.
The S Series Refractory Brick is available in a range of materials, including Fused Silica, Alumina-Chrome, and Chrome Oxide. Each grade has its own unique properties, such as bulk density, apparent porosity, cold crushing strength, and refractoriness under load. These properties make the S Series suitable for a variety of applications, from high-temperature furnaces to specialized industrial processes.
Overall, the S Series Refractory Brick is a high-performance ceramic component that offers exceptional performance, reliability, and customization options. With its focus on quality, technical expertise, and customer satisfaction, this product series is an ideal choice for industries requiring high-performance refractory materials.
Data Sheet
| MR Quality | SPECIAL PRODUCTS: BRICKS & BLOCKS | |||||||
|---|---|---|---|---|---|---|---|---|
| MR-FS99 | MR-FS99E | MR-ALCR | MR-CR85 | MR-CR96 | MR-ZR95 | MR-AL30 | MR-AL50 | |
| Al2O3 (%) | – | – | 86.0 | 3.0 | 95 | – | – | 39 |
| Fe2O3 (%) | 0.1 | 0.1 | 0.1 | 0.1 | – | – | 0.2 | 0.2 |
| ZrO2 (%) | – | – | – | 8.0 | – | 95.0 | 2.1 | 3.5 |
| SiO2 (%) | 99.0 | 96.0 | – | – | – | – | 1.5 | 2.5 |
| Cr2O3 (%) | – | – | 11.0 | 84.0 | – | 3.5 (MgO) | 29.3 | 51 |
| TiO2 (%) | – | – | – | 3.5 | 4.0 | – | – | – |
| B.D. (gm/cc) | 1.85 | 1.80 | 3.20 | 4.10 | 4.10 | 5.20 | 3.45 | 3.70 |
| A.P. (%) | 19 | 20 | 17 | 16 | 19 | 5 | 16 | 15.5 |
| C.C.S. (kg/cm2) | 300 | 250 | 800 | 900 | 800 | 1200 | 1600 | 1200 |
| R.U.L. (ta °C) | 1650 | 1600 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| P.C.E (Orton) | 31 | 31 | 38 | 38 | 42 | 42 | 39 | 40 |
| R.T.E. (%) | 0.18 | 0.18 | 0.83 | – | 0.75 | – | 1.2 (1500°C) | 1.2 (1550°C) |
| T.C. (W/m·K) | 0.7 | 0.65 | 3.5 | – | 4.0 | – | 3.1 | 3.5 |
| Material | Fused Silica | Fused Silica | Alumina-Chrome | Chrome Oxide | Chrome Oxide | Zirconia | Alumina | Alumina |
| Typical Application | Hot repair of silica roof | Feeder expendables | Glass line repair | Liner for orifice or spout for severe corrosion | Throat & corner block of doghouse | Liner for orifice or spout for severe corrosion | Chrome | Chrome |
